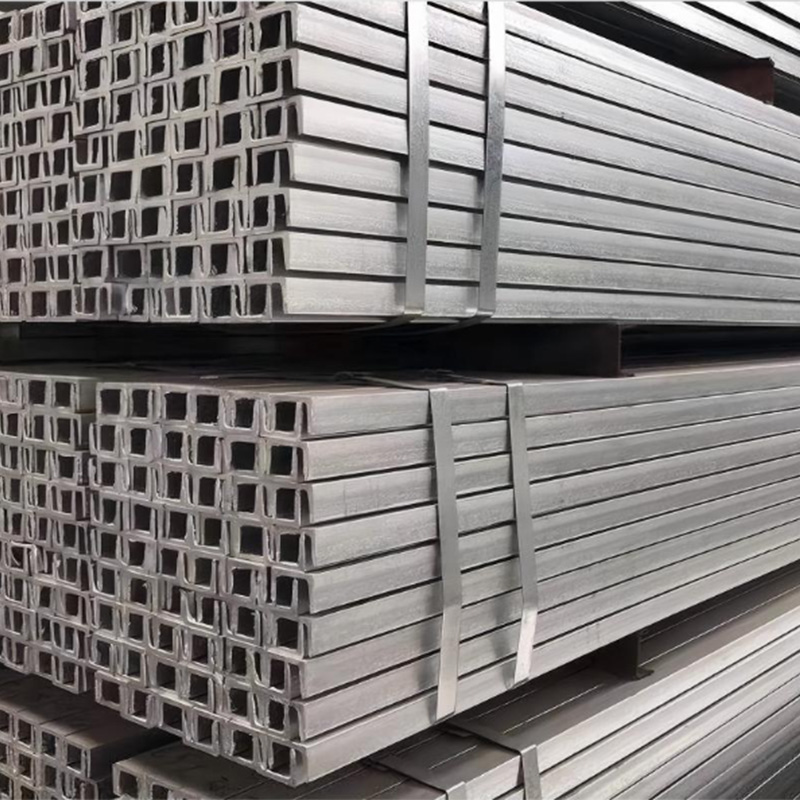

Hot galvanizing U-shaped steel photovoltaic support
Core Selling Points 1.Adopts hot-dip galvanizing process with zinc coating thickness ≥ 85μm, complying with GB/T 13912 standard. 2.Proven technology ensures an anti-corrosion service life of over 25 years with excellent cost performance. 3.Optimized U-channel section features high load-bearing...
Description
marker
Core Selling Points
1.Adopts hot-dip galvanizing process with zinc coating thickness ≥ 85μm, complying with GB/T 13912 standard.
2.Proven technology ensures an anti-corrosion service life of over 25 years with excellent cost performance.
3.Optimized U-channel section features high load-bearing capacity and easy installation.
4.Operates stably and reliably within the temperature range of -40℃ to +60℃.
5.Complete documents available, including ISO certification, material test reports and salt spray test reports.
Product Description
This hot-dip galvanized U-channel steel PV bracket adopts mature hot-dip galvanizing technology. The zinc coating maintains stable adhesion without embrittlement even at -40℃ extreme low temperature. Its 25-year anti-corrosion lifespan effectively secures project returns. Featuring high load-bearing capacity, the U-channel structure is well suited for large-scale ground-mounted PV projects in Russia and Central Asia, delivering outstanding cost performance.
Material & Technology
| Item | Specification |
| Main Material | Q235B Carbon Structural Steel |
| Surface Treatment | Hot-dip Galvanizing |
| Coating Thickness | ≥ 85μm |
| Anti-corrosion Service Life | ≥ 25 years |
| Operating Temperature Range | -40℃ ~ +60℃ |
Performance Parameters
| Parameter | Technical Data |
| Overall Dimension | 2350×2350×1250 mm |
| Section Specification | Column: U89×42×2.0 mm; Purlin: U41×41×1.5 mm |
| Unit Weight | Net Weight: 27.5 kg/set; Gross Weight: 30.5 kg/set |
| Designed Wind Load | 0.85 kPa (Customizable up to 1.0 kPa) |
| Designed Snow Load | 1.0 kPa (Customizable up to 1.5 kPa) |
| Seismic Resistance | Seismic fortification intensity: 8 degrees |
| Installation Tilt Angle | 10° ~ 35° adjustable |
Product Advantages
1.Cold Resistance: Mature and stable hot-dip galvanizing process ensures excellent coating adhesion at -40℃.
2.Thick Zinc Protection: Zinc coating over 85μm will not crack or peel off under ultra-low temperature of -40℃.
3.Cost-effective: Optimized mature process cuts costs for economical project investment.
4.High Load Capacity: Optimized U-channel design guarantees solid structural strength.
5.Easy Installation: Standardized U profile with universal accessories greatly improves installation efficiency.
