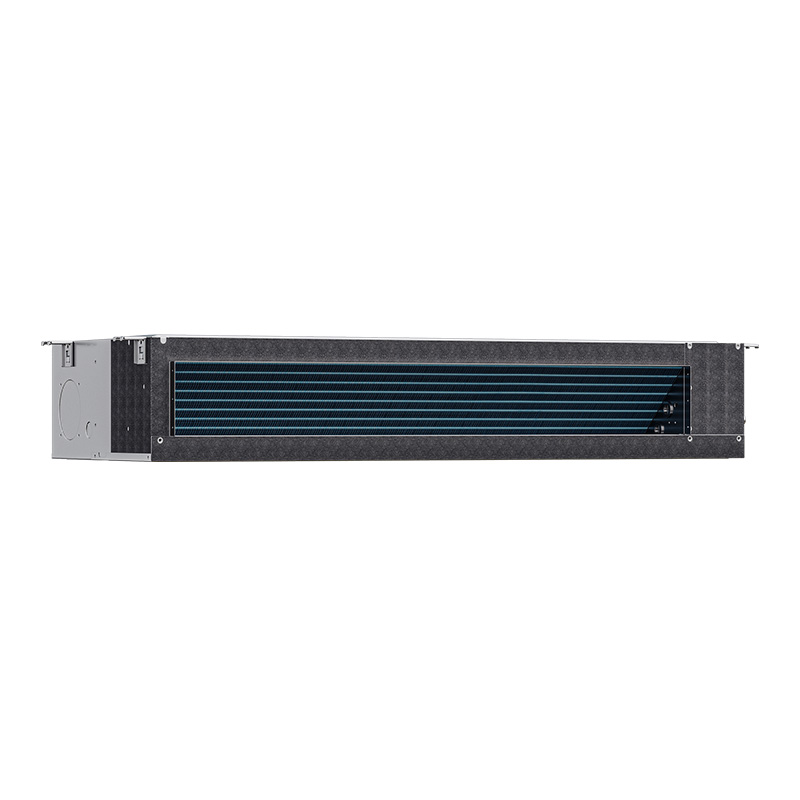

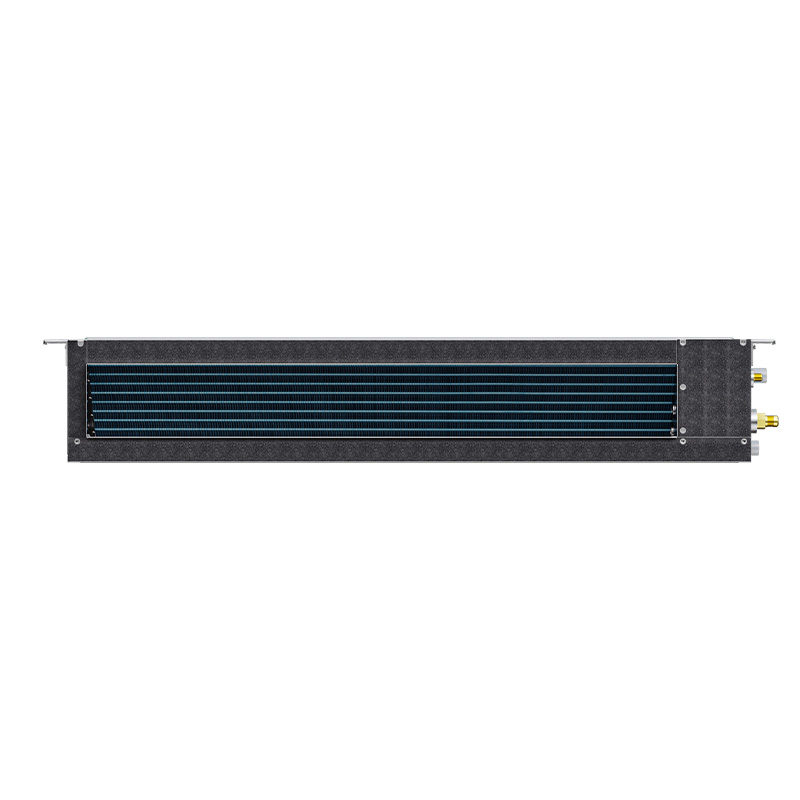

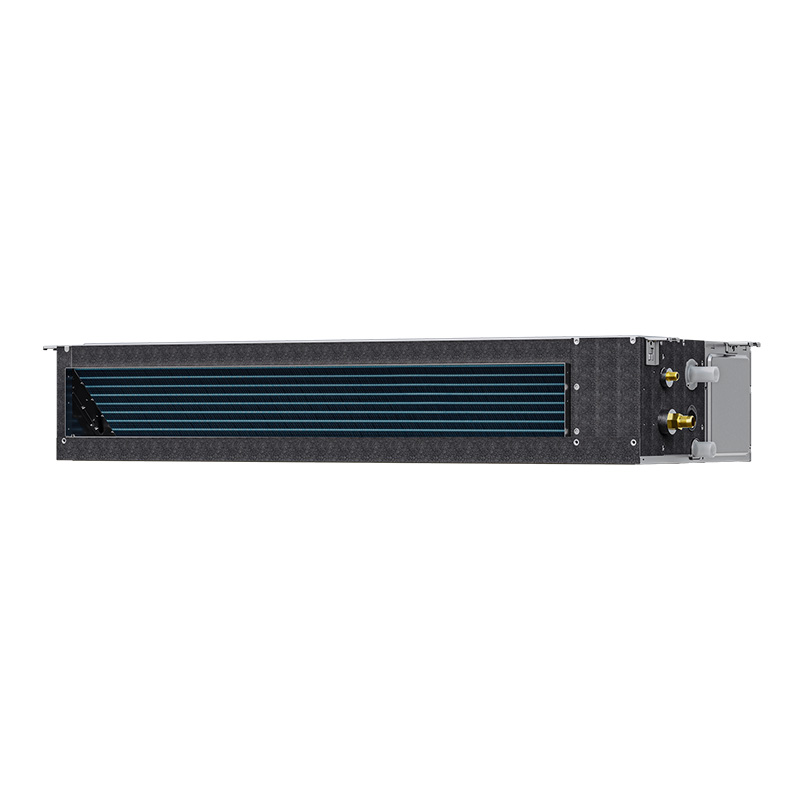

Indoor unit air duct machine
Product features 1.Compact Body with Shallow Depth The minimum unit width is only 550 mm, and external static pressure up to 50 Pa is available. It is easy to install in narrow areas of hotels and apartments. The unit depth is just 450 mm, saving ceiling space and blending perfectly with inte...
Description
marker
Product features
1.Compact Body with Shallow Depth
The minimum unit width is only 550 mm, and external static pressure up to 50 Pa is available. It is easy to install in narrow areas of hotels and apartments. The unit depth is just 450 mm, saving ceiling space and blending perfectly with interior decoration.
2.DC Motor for Quiet Operation
Equipped with a high-efficiency brushless DC motor for stepless speed regulation. Combined with optimized internal air duct design of the indoor heat exchanger, it supports 9 fan speed levels and effectively reduces operating noise.
3.Intelligent Air Volume Regulation
It operates with constant air volume and features automatic motor speed adjustment. When filters or air ducts at air inlets and outlets are blocked, the unit will automatically adjust the motor speed according to detected static pressure changes to maintain stable airflow, ensuring consistent cooling and heating performance.
4.Reliable Drainage System
Comes standard with a DC condensate lift pump with a maximum lift of 1200 mm. A float switch is built into the drain pan to prevent water overflow, enabling flexible condensate drainage to suit on-site installation conditions.
5.Flexible Return Air Options for User-Friendly Installation、
Two return air modes (bottom return and rear return) are available for more flexible installation. You may select the optimal solution based on interior design.
Note: If installation space permits, side supply and rear return configuration is recommended for further noise reduction.
Multiple Installation Ways: Ceiling-mounted, floor-mounted and wall-mounted for versatile application.
Applicable Models: RFUT(A)(D)15-71MXE
