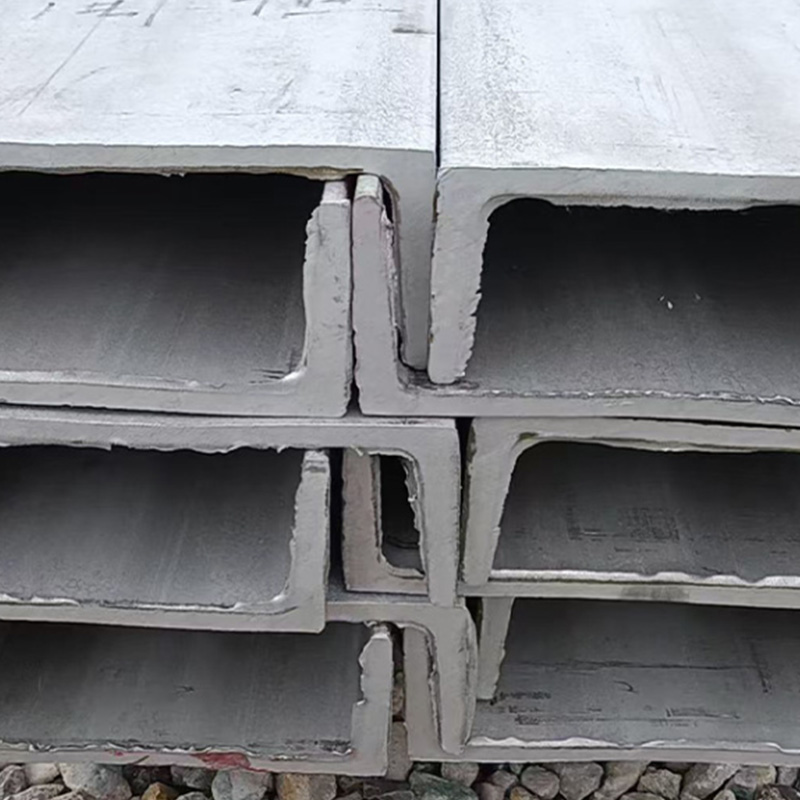

Zinc-aluminum-magnesium U-shape steel photovoltaic support
Core Selling Points 1.Adopts Zinc-Aluminum-Magnesium (ZAM) alloy coating with coating weight ≥ 275g/㎡. 2.Self-healing performance: Automatically repairs cut surfaces to prevent red rust. 3.Anti-corrosion service life ≥ 30 years, far superior to conventional hot-dip galvanized products. 4.Ligh...
Description
marker
Core Selling Points
1.Adopts Zinc-Aluminum-Magnesium (ZAM) alloy coating with coating weight ≥ 275g/㎡.
2.Self-healing performance: Automatically repairs cut surfaces to prevent red rust.
3.Anti-corrosion service life ≥ 30 years, far superior to conventional hot-dip galvanized products.
4.Lightweight design, around 8% lighter than traditional galvanized steel brackets.
5.Complete ISO certification, material test reports and salt spray test reports available.
Product Description
Optimized for cold climates in Russia and Central Asia, this ZAM U-channel steel PV bracket features high structural strength. The ZAM alloy coating maintains reliable self-healing performance on cut surfaces even in extreme cold. It operates steadily within a wide temperature range from -40℃ to +80℃ and delivers a 30-year anti-corrosion lifespan, making it an ideal choice for new-generation high-performance PV mounting solutions.
Material & Technology
| Item | Specification |
| Main Material | Q235B Carbon Structural Steel |
| Surface Treatment | Zinc-Aluminum-Magnesium (ZAM) Coating |
| Coating Weight | ≥ 275g/㎡ |
| Anti-corrosion Service Life | ≥ 30 years |
| Operating Temperature Range | -40℃ ~ +80℃ |
Performance Parameters
| Parameter | Technical Data |
| Overall Dimension | 2350×2350×1250 mm |
| Section Specification | Column: U89×42×2.0 mm; Purlin: U41×41×1.5 mm |
| Unit Weight | Net Weight: 27 kg/set; Gross Weight: 30 kg/set |
| Designed Wind Load | 0.9 kPa (Customizable up to 1.1 kPa) |
| Designed Snow Load | 1.2 kPa (Customizable up to 1.5 kPa) |
| Seismic Resistance | Seismic fortification intensity: 8 degrees |
| Installation Tilt Angle | Adjustable (Customizable up to 45°) |
Product Advantages
1.Self-healing Coating: The Zn-Al-Mg ternary alloy realizes automatic anti-corrosion repair on cut sections.
2.Long Service Life: 30-year anti-corrosion performance reduces total life-cycle cost.
3.Lightweight & High Strength: 8% weight reduction compared with conventional products, cutting transportation and installation costs.
4.Wide Temperature Adaptability: Stable operation from -40℃ to +80℃, capable of withstanding extreme weather.
5.High Load Capacity: Rated for 0.9 kPa wind load and 1.2 kPa snow load, suitable for various working conditions.
