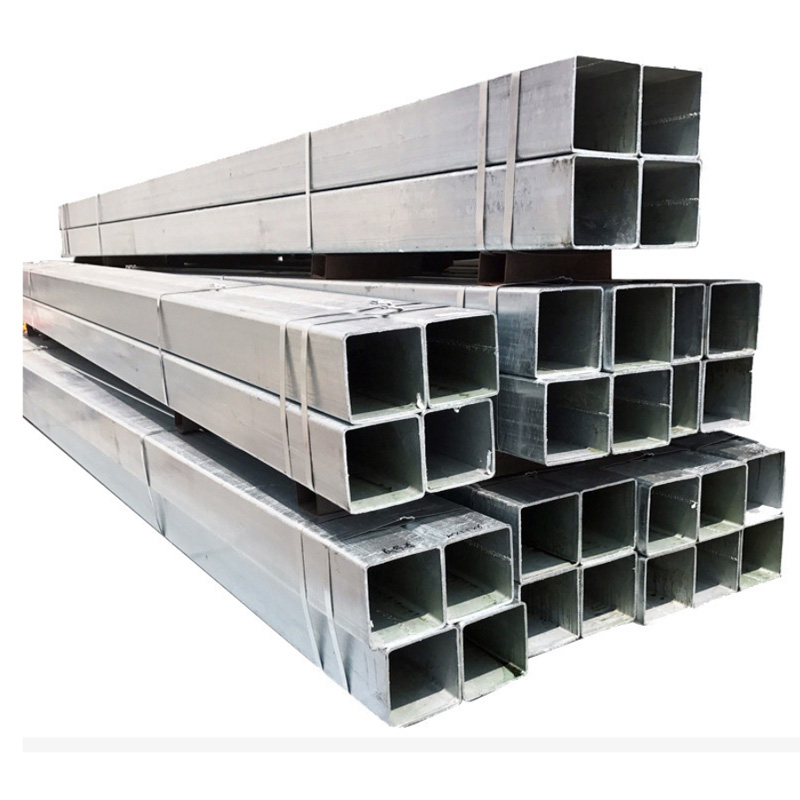

Zinc-aluminum-magnesium square tube photovoltaic support
Core Selling Points 1.Square tube section design delivers higher structural rigidity and stronger deformation resistance. 2.Adopts Zinc-Aluminum-Magnesium (ZAM) ternary alloy coating with cut surface self-healing performance. 3.Anti-corrosion service life ≥ 30 years; passed salt spray test for...
Description
marker
Core Selling Points
1.Square tube section design delivers higher structural rigidity and stronger deformation resistance.
2.Adopts Zinc-Aluminum-Magnesium (ZAM) ternary alloy coating with cut surface self-healing performance.
3.Anti-corrosion service life ≥ 30 years; passed salt spray test for over 3000 hours.
4.Designed for high wind load of 1.0 kPa, suitable for working conditions above Grade 12 typhoon.
5.Complete qualifications including ISO certification, material test reports and salt spray test reports.
Product Description
This ZAM square tube PV mounting bracket is optimized for cold regions in Russian-speaking countries. Featuring excellent rigidity, the square tube structure maintains outstanding stability under heavy snow load and strong wind. The advanced ZAM alloy coating retains self-healing capability even in extreme cold. With a 30-year anti-corrosion lifespan, it guarantees long-term reliable operation of PV projects.
Material & Technology
| Item | Specification |
| Main Material | Q235B Carbon Structural Steel |
| Surface Treatment | Zinc-Aluminum-Magnesium (ZAM) Coating |
| Coating Weight | ≥ 275 g/㎡ |
| Anti-corrosion Service Life | ≥ 30 years |
| Operating Temperature Range | -40℃ ~ +80℃ |
Performance Parameters
| Parameter | Technical Data |
| Overall Dimension | 2350×2350×1250 mm |
| Section Specification | Column: □80×80×2.0 mm; Beam: □50×50×1.5 mm |
| Unit Weight | Net Weight: 26 kg/set; Gross Weight: 29 kg/set |
| Designed Wind Load | 1.0 kPa (Customizable up to 1.2 kPa) |
| Designed Snow Load | 1.3 kPa (Customizable up to 1.6 kPa) |
| Seismic Resistance | Seismic fortification intensity: 8 degrees |
| Installation Tilt Angle | 10°~35° adjustable (Customizable up to 45°) |
Product Advantages
1.High Rigidity of Square Tube: Higher section rigidity greatly enhances structural stability.
2.Long-lasting Anti-corrosion: 30-year service life effectively cuts maintenance costs.
3.Low-temperature Corrosion Resistance: The Zn-Al-Mg ternary alloy keeps the cut surface self-healing function effective in frigid environments.
4.Superior Wind Resistance: Standard wind load of 1.0 kPa (up to 1.2 kPa on request), ideal for windy areas such as Central Asian grasslands and Caspian Sea coast.
5.High Snow Load Resistance: Standard snow load of 1.3 kPa (up to 1.6 kPa on request), specially designed for cold regions of Russia and Central Asia.
